Product

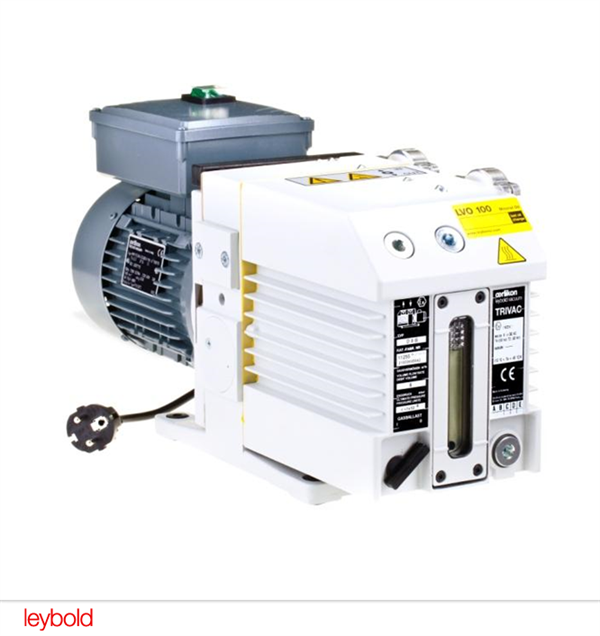

TRIVAC D8B

Product# 140082
Pumping Speed [m3/h (cfm)]: 11.6 (6.9)
Operating Fluid:  LVO100

$10,260.00
140082

All pumps of the standard versions from the D 4 B to the D 25 B model are equipped either with single-phase or three-phase motors. D 40 - 65 B models are equipped with three-phase motors. Moreover, all pumps of the B series are available also without the motor. The TRIVAC B range is a modular system which divides into three groups: TRIVAC 4/8 Series, TRIVAC 16/25 Series, TRIVAC 40/65 series.









Also Available:

trivac bcs
TRIVAC BCS
  TRIVAC BDOT
TRIVAC B DOT
  TRIVAC T

TRIVAC T
  TRIVAC E

TRIVAC E






60 Hz

Pumping Speed [m3/h (cfm)]:



11.6 (6.9)

Total Pressure Without G.B [mbar (Torr)]:



≤ 0.002 (≤ 0.0015)

Total Pressure With G.B [mbar (Torr)]:



≤ 0.005 (≤ 0.0038)

Noise Level [dB(A)]:



50

Intake & Exhaust Connections [G or NPT]:



DN16 ISO-K

Operating Fluid:



LVO100
