Shop Vacuum Pumps Dry Vacuum VARODRY VD 100, 3-ph, 230/460V, with purge kit

Product

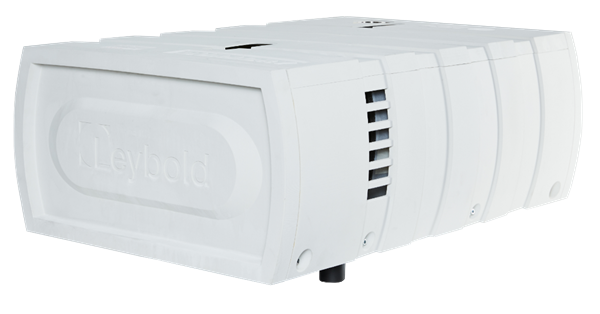

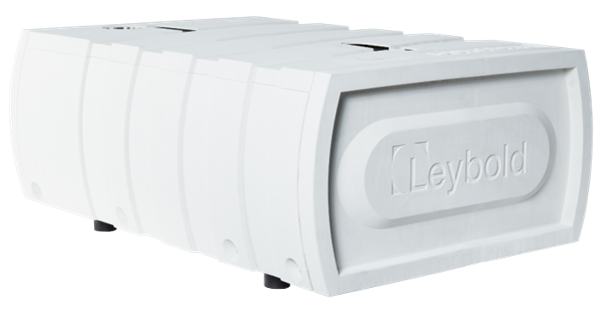

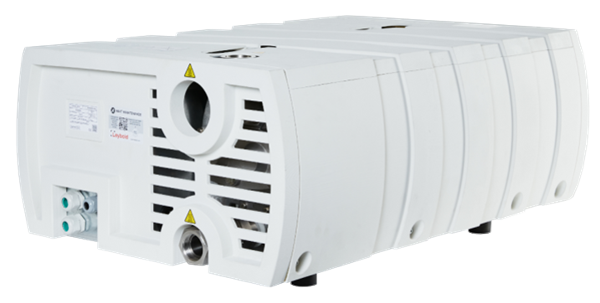

varodry
varodry varodry varodry
VARODRY VD 100, 3-ph, 230/460V, with purge kit

Product# 111100V16
with Purge
Pumping Speed [m3/h]: 100
Operating Fluid: N/A
3 phase, GB

111100V16
Benefits of this Dry Compressing Screw Vacuum Pump

Varodry Video·         Highest performance → Best productivity
·         Lowest noise → Better working environment
·         Nearly no maintenance → Lowest total cost-of-ownership
·         100% Oil-free design → Environmentally friendly
·         Best in class power consumption – More pumping speed with less power
·         Air-cooled standard design – No expensive cooling water
·         No need for purge-gas in most applications – No costly compressed air
·         Oil-free compression – No need to exchange oil and exhaust filter







varodry performance  new varodry

Accessories



111005A15

Inlet non return valve VARODRY DN40



111005A20

Inlet Adapter G 2“ - DN40 ISO-KF



111005A21

Inlet Adapter G 2“ – G 1 ¼”



111005A22

Inlet Adapter G 2” - NPT 1 1/4-11,5



111005A23

Inlet Adapter G 2” - NPT 2-11,5



111005A24

Inlet Adapter G 2” – DN63 ISO-K



111005A30

Exhaust Adapter G 1 ½“ - DN40 ISO-KF



111005A31

Exhaust Adapter G 1 ½“ – NPT 1½-11,5





Purge Gas / Gas Ballast Connection (optional)





The VARODRY has a gas ballast system and an optional seal-purge system. It consists of three components.
1. Gas ballast
Gas ballast can be used if the vapors inside the pump could condense. Ambient air is used to dilute the condensable vapors and keep the partial pressure below the condensation level. The VARODRY offers two levels of water vapor tolerance, 20 mbar and 60 mbar.
The tolerance level can be selected depending on the application requirements. A high vapor tolerance will reduce the vacuum performance of the pump.





2. Seal purge exhaust side (optional)
The VARODRY range has no hermetically sealed shaft feedthroughs at the exhaust side. Therefore small amounts of gases inside the pump will escape into the ambient air if no seal purge is used. In order to avoid this the shaft seals at the exhaust side can be loaded with purge gas. The purge gas will create a gas barrier that will prevent gas from inside the pump to escape. Note that a fraction of the purge gas will also escape to the ambient. Make sure that the pump is operated in a room with good ventilation if other gases than air are used as purge gas.

3. Seal purge inlet side
Inlet seal purge can be used if there is a risk that harmful amounts of dust or condensable vapors are present at the inlet of the pump. Such substances could migrate to the inlet side bearings of the pump and reduce the service interval significantly. The inlet side purge is typically only used whenever the inlet pressure increases and is active until a pressure equalization is reached. Based on the pump type, the VARODRY has either a manual gas ballast or 3 solenoid valves for inlet & outlet seal purge and gas ballast mounted underneath the pump enclosure.

Manual gas ballast configuration
The VARODRY with manual gas ballast (standard version) is delivered with components that can be mounted to the pump body in order to achieve different water vapor tolerances. When changing the setup, make sure that the gaskets are in good condition and that the parts are tightened properly.

Maintenance Schedule

For the VARODRY products two types of maintenance are required:
1.  Belt change (can be done by the user of the pump)
2. Pump overhaul (requires special equipment and must be done by authorized Leybold service only.

For determining the operation hours, the VARODRY is equipped with a battery powered hour meter. In order to access the hour meter, the pump cover has to be removed. The lifetime of the battery is limited to 3-5 years. If the battery is empty the hour meter needs to be replaced. Contact authorized Leybold Service for hour meter replacement.

Authorized Leybold Service
Whenever you send us equipment, indicate whether the equipment is contaminated or is free of substances which could pose a health hazard. If it is contaminated, specify exactly which substances are involved. You must use the form we have prepared for this purpose.
