Part# 960732V1706

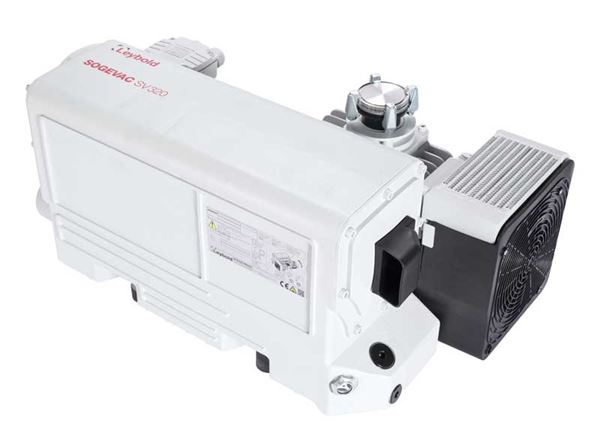

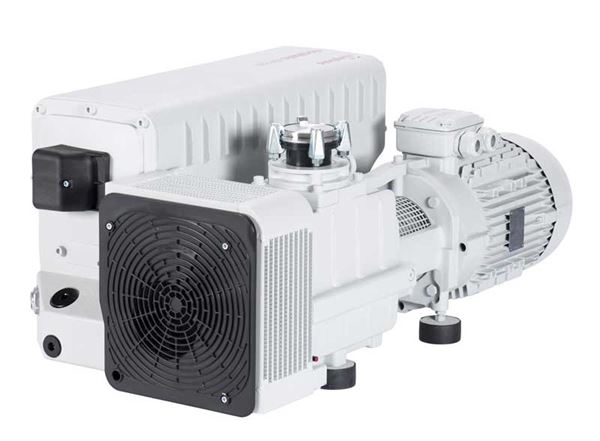

Pump with wide range motor and integrated gas ballast valve, air cooled, synthetic oil, 150 mm turbine,
200V - 15%...230V +10% / 380... 400V +-10%, 50 Hz, 6.0 kW, 200V -15% ...230V +10% / 380 ... 400V +-10% & 460 +-10%, 60 Hz, 7.2kW
Pumping Speed [m3/h (cfm)] - 385 (226)
Total Pressure Without G.B [mbar (Torr)] - ≤ 0.08 (≤ 0.06)
Total Pressure With G.B [mbar (Torr)]: ≤ 0.7 (≤ 0.5)
Noise Level [dB(A)]: 73
Intake & Exhaust Connections [G or NPT]: 2" NPT
Operating Fluid: LVO 210
